Forgings
We have 3000tons, 5000tons, 8000tons and 16500tons Forging Press and Roll Forging Machinery, Screw Press and Forging Hammers, can able forged per piece weight from 0.5kg to 120,000kg  Carbon steel and Alloy steel, Stainless Steel, Tools steel, Nickel Alloys, Duplex and Super Duplex for the valves body, shaft/crankshaft, cylinders, turbines, gear with reducer housing and other energy equipment and general or special industrial parts.

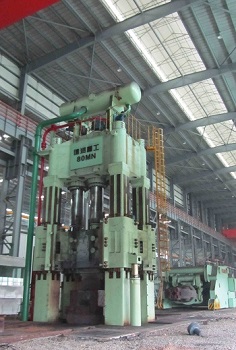

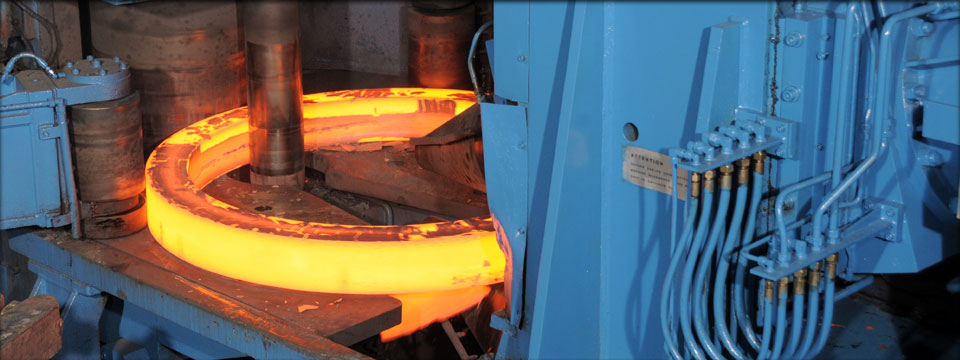

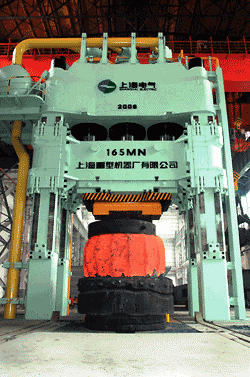

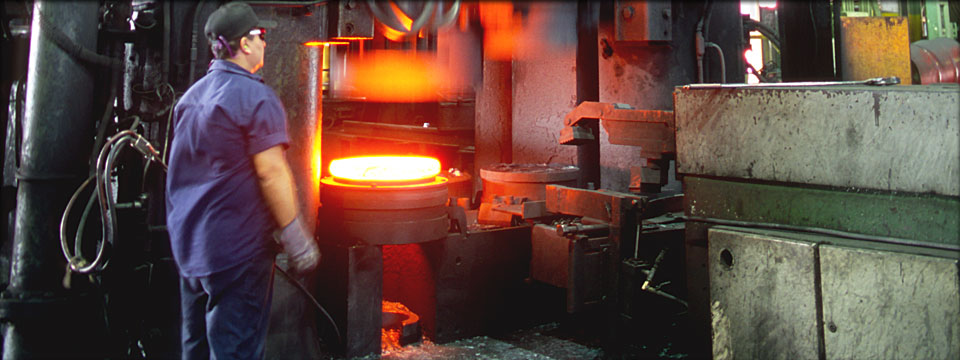

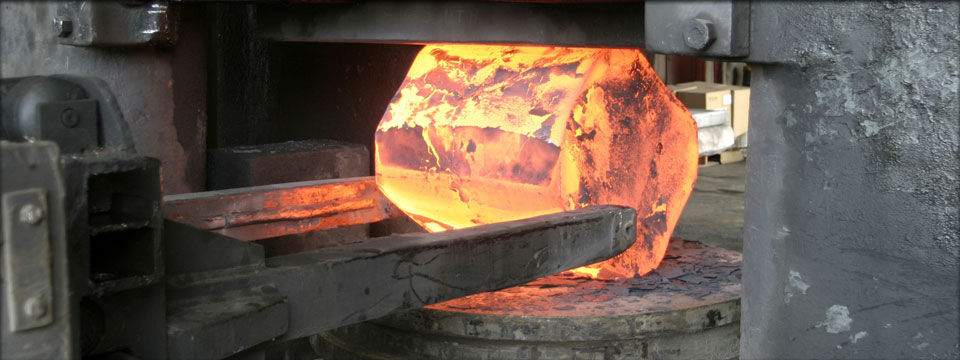

16500 Tons Forging Press                                      Φ4600mm Ring Rolls                                              8000 Tons Forging Press

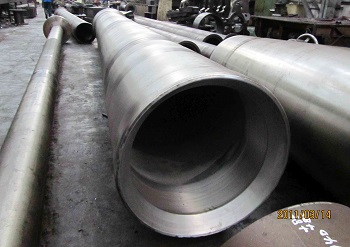

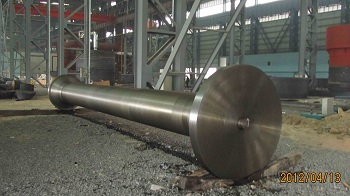

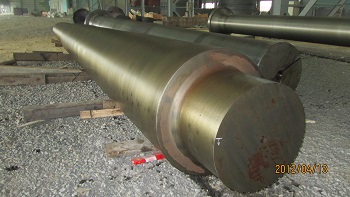

 L 5000mm Piston                                                            Φ1100 x L11200mm Shaft                                      Φ880 x L12000mm Tube

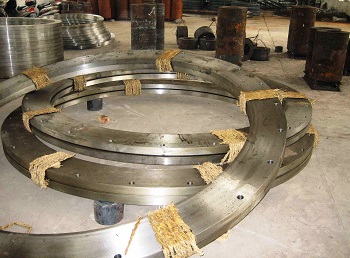

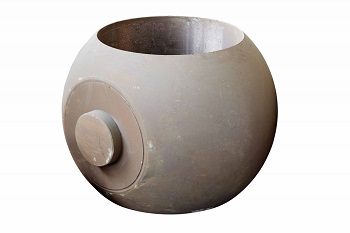

Φ6600mm Rings                                                            Φ2600 Forged Ball                                      Φ1250 x L8000mm Propeller shaft



STEELS			GRADE
Tool Steels  / High Speed Steels			A6, A10, D1, D2, D6, H11, H12, H13
Alloy Steels / Manganese Steels			3000, 4000, 5000 and 6000 series
STAINLESS STEELS
Austenitic			300 series grades (304, 310, 316, 321, 347)
Martensitic			400 series grades (403, 410, 416, 420, 422, 440A, 440B, 440C, 446)
PH Grades			17-4ph, 17-7ph, 13-8Mo, 15-5ph
Ferritic			430, 439 etc
Duplex			2205 (F51), 254 SMO (F44) etc.
Super Duplex			UNS 32760
Super Austenitic			904L, Ferralium 225
SIZE RANGES
SHAPE	MINIMUM SIZE                     MAXIMUM SIZE			LENGTH MXIMUM SIZE
Round Bar/Shaft/Roller/Disc/Ring	5 mm                                   8000 mm Diameter			14000 mm Bar/Shaft/Roller
Flat Bars	6mm x 12 mm                      1400 x 1800 mm			16000 mm
Square Bars	6 mm Sq                              1600 mm Sq			14000 mm
Custom Shapes	On Request
TOLERANCES AND CONDITION
Dimension or Diameter		+/- 0.03mm
